1.3-Inch IPS LCD Display: Vivid 240x240 Colour Screen for DIY Electronics

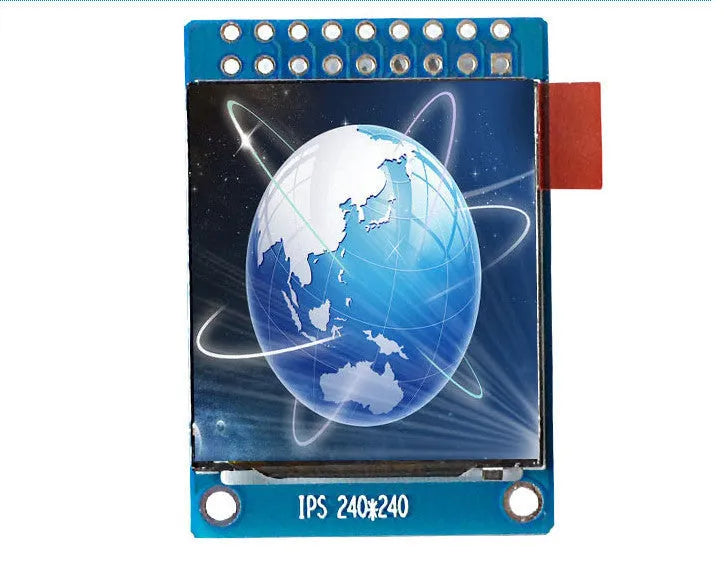

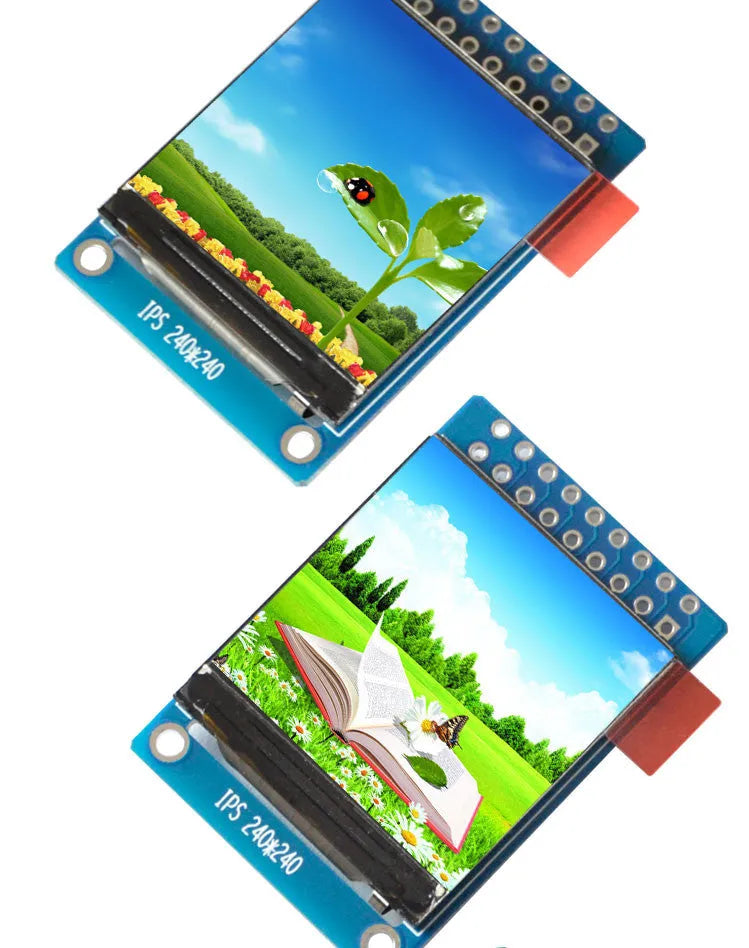

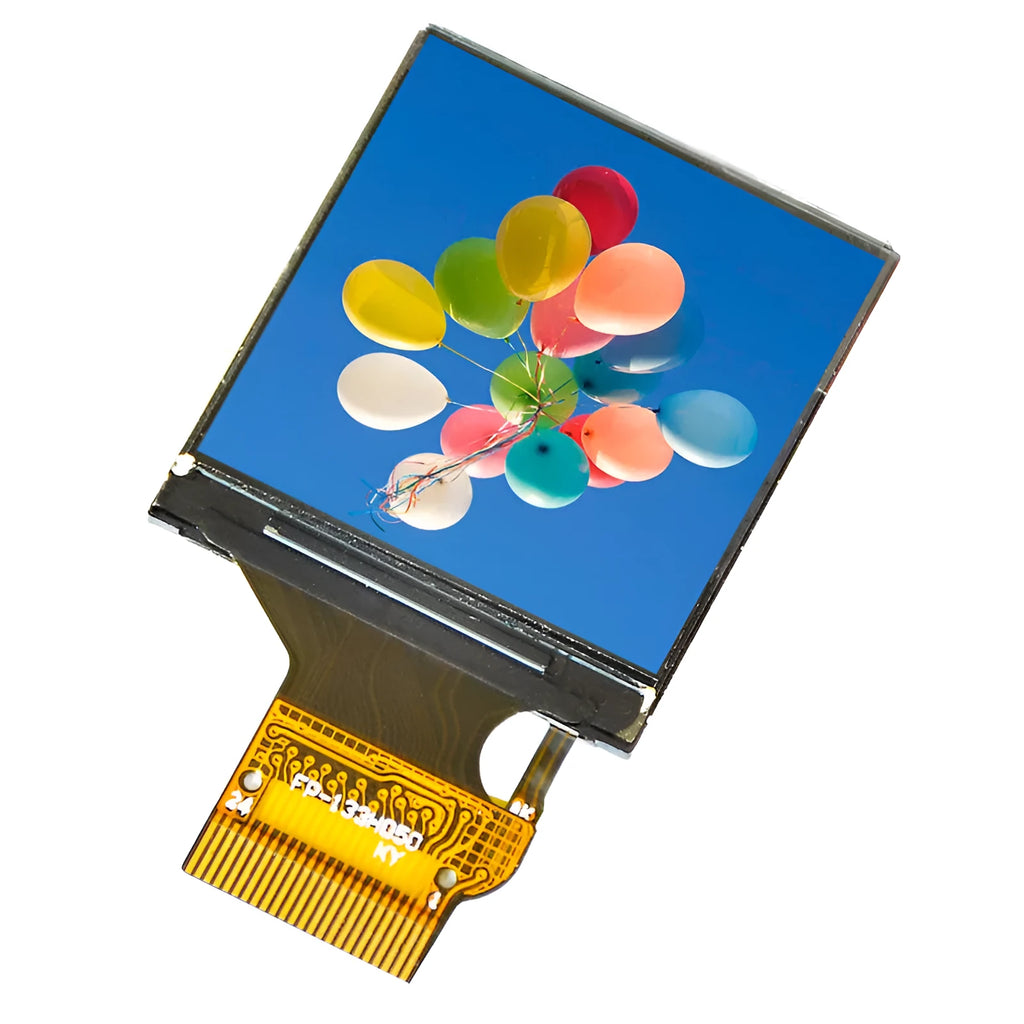

This compact 1.3-inch IPS LCD module provides a full-colour, high-resolution display solution for a wide range of DIY electronics, prototyping, and hobbyist projects. Featuring a 240x240 pixel square screen, it delivers crisp graphics and text, supported by IPS technology for improved colour vibrancy and wider viewing angles compared to standard TFT displays. Its small physical footprint of 27.78mm by 39.22mm makes it suitable for space-constrained applications, from custom instrumentation to portable device interfaces. The screen is driven by an ST7789 control chip and offers flexible connection options to integrate seamlessly into your designs.

Features and Construction

The core of this display is its 1.3-inch IPS panel, engineered for vivid colour output and clarity. The construction centres on practical connectivity and a robust design suitable for project integration.

Material and Build

The display utilises a high-definition IPS (In-Plane Switching) colour screen. This technology is known for delivering more accurate and consistent colours across a wider viewing angle than traditional TFT LCDs. The module is built around the ST7789 driver chip, a common controller for small colour displays, which manages the pixel data to produce the final image. The assembly is designed for integration, featuring an 18-pin connection header for interfacing with your main board or microcontroller.

Size and Practical Fit

The module's total physical dimensions are 27.78mm in width by 39.22mm in height, presenting a compact form factor. The active viewing area, where the image is displayed, measures 23.4mm square. This size makes it an ideal choice for projects where panel space is limited but a clear colour readout is required, such as in custom handheld devices, compact status monitors, or embedded system dashboards.

Uses and Placement

With its clear display and flexible interfaces, this screen is suited for both experimental prototyping and finished project integration, serving well in educational, hobbyist, and light professional contexts.

Event or Professional Use

For professional prototyping or product development, this display can serve as a user interface component for devices requiring a small, colour status screen. Its support for both 8-bit parallel and SPI communication protocols offers developers flexibility in choosing a microcontroller or system-on-chip with available pins. The adjustable display direction allows for mounting in different orientations to suit the final product's design.

Everyday Home Use

For electronics hobbyists and makers, this screen is a practical component for personal projects like custom weather stations, retro gaming consoles, smart home controller interfaces, or robotics telemetry displays. The vivid IPS colours make readings and graphics easier to see at a glance. Its operation across a temperature range from -20 to 70 degrees Celsius means it can be used in projects intended for garages, sheds, or other environments with variable conditions.

Benefits and Buying Value

The value of this display lies in its combination of clear colour output, standard connectivity, and a size that fits many project enclosures without requiring complex adaptation.

Reuse and Low Maintenance

As a solid-state electronic component with no moving parts, the display requires no ongoing maintenance. Its standard interfaces mean it can be repurposed across multiple projects or prototypes. The durable construction is intended for soldering and integration into a permanent circuit, offering a long service life as part of a completed device.

Why Choose This Product

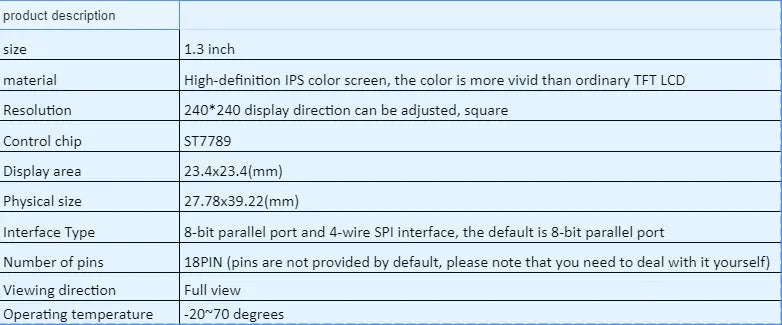

This screen provides a specific set of features: a 1.3-inch IPS panel with 240x240 resolution, driven by a common ST7789 chip, with dual interface options. It is a focused choice for users who need a small, colourful display and have the ability to source and attach their own connection pins. It offers a practical upgrade in colour quality over basic monochrome or TFT screens for applications where visual clarity is important.
