ATMEGA328P Microcontroller Development Board with 14 Digital I/O and 8 Analog Inputs for Electronic Projects

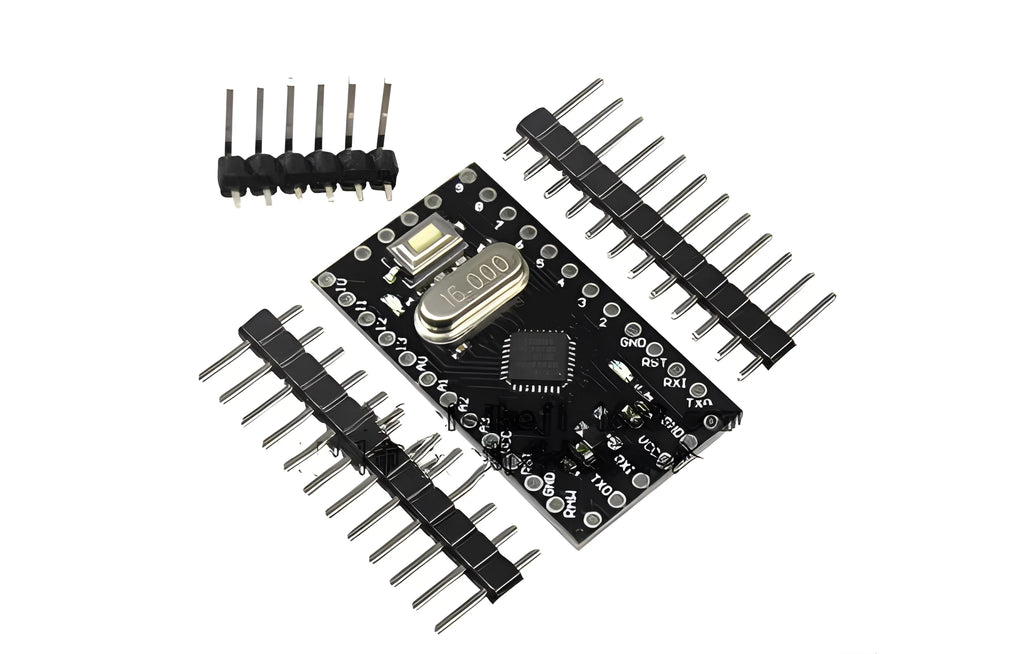

This professional electronic building block template provides a streamlined foundation for microcontroller-based projects without unnecessary complexity. Built around the Atmel Atmega328P-AU processor, the compact 33.3mm by 18.0mm board delivers essential features for prototyping and embedded applications. With 14 digital input/output pins including six capable of PWM output and eight dedicated analog inputs, it offers flexible connectivity options for sensors, displays, motors, and other electronic components. The 16MHz resonator ensures consistent timing for precise control operations, while the inclusion of mounting hole pin headers facilitates secure installation in finished projects.

Features and Construction

The board's design prioritises practical functionality for electronics enthusiasts and professionals working on embedded systems. The carefully selected pin configuration supports a wide range of applications while maintaining a minimal footprint suitable for space-constrained installations.

Material and Build

Constructed using standard PCB manufacturing techniques with copper traces providing reliable electrical connectivity between components. The Atmel Atmega328P-AU microcontroller serves as the central processing unit, complemented by supporting electronic components including the 16MHz resonator, reset button, and pin headers. The board incorporates a TTL-level serial port transceiver (RX/TX) for straightforward serial communication, eliminating the need for additional level-shifting circuitry in many applications.

Size and Practical Fit

Measuring precisely 33.3mm by 18.0mm, the board occupies minimal space while providing comprehensive connectivity options. This compact dimension makes it suitable for integration into finished projects where space efficiency matters. The mounting hole pin headers allow secure mechanical attachment, preventing movement during operation or transport. Despite its small footprint, the board accommodates all essential connectors and components without compromising accessibility for programming and debugging.

Uses and Placement

The board's combination of digital and analog capabilities supports diverse applications ranging from simple educational projects to professional embedded systems. Its flexible power options and communication interfaces enable integration into various environments and use cases.

Event or Professional Use

In professional settings, this microcontroller board serves as a reliable platform for prototyping embedded systems before moving to custom PCB designs. The eight analog inputs (A0-A7) enable precise measurement of sensor data including temperature, light levels, and voltage readings. Six PWM-capable digital ports (D3, D5, D6, D9, D10, D11) provide control signals for motor speed regulation, LED brightness adjustment, and analog-like output generation. The board supports external power from 3.3V to 12V DC sources, including 9V battery options, allowing deployment in both mains-powered and portable applications.

Everyday Home Use

For electronics enthusiasts and hobbyists, the board offers an accessible entry point to microcontroller programming and circuit design. The 14 digital input/output ports (RX, TX, D2-D13) connect to buttons, relays, displays, and other common components for home automation, robotics, and interactive projects. Serial download support facilitates programming through standard development environments, while the TTL serial port enables communication with computers and other devices for data logging and remote control applications. The compact size makes it suitable for incorporation into finished projects where internal space is limited.

Benefits and Buying Value

This microcontroller board provides specific technical advantages that distinguish it from more complex or limited alternatives. Its balanced feature set addresses common requirements without including unnecessary components that increase cost or complexity.

Reuse and Low Maintenance

The board's standard pin headers and mounting holes facilitate removal and reuse across multiple projects, providing lasting value beyond single applications. Standard power requirements (3.3V-12V DC) allow operation from commonly available supplies, while the absence of delicate surface-mount components in critical areas reduces maintenance concerns. The robust PCB construction withstands typical prototyping environments, and the inclusion of a reset button simplifies troubleshooting during development cycles.

Why Choose This Product

This development board offers a practical balance between capability and simplicity for electronics projects. The specified 14 digital I/O pins and 8 analog inputs cover most common prototyping requirements without the complexity of larger boards. The 16MHz clock frequency provides sufficient speed for real-time control applications while maintaining compatibility with existing code libraries and development tools. Support for serial downloading enables straightforward programming without specialised hardware, and the flexible power input range accommodates various supply options. For those seeking a compact, capable microcontroller foundation without unnecessary features, this board provides focused functionality.
