Aluminium Alloy Hinge Locating Rule for Precise 35mm Cabinet Hinge Installation

Installing cabinet hinges accurately is a critical step in furniture assembly, where even small errors can lead to misaligned doors that bind or fail to close properly. This hinge locating rule is a dedicated tool designed to eliminate guesswork from this process. It provides a physical guide for marking the exact position of hinge cup holes, specifically for the common 35mm diameter hinge system used in kitchen cabinets, wardrobes, and other fitted furniture. By offering adjustable margin settings, it ensures consistent spacing between the door edge and the cabinet frame, a key factor for a professional finish. This tool is aimed at DIY enthusiasts and tradespeople looking to achieve reliable, repeatable results in home improvement and woodworking projects, transforming a fiddly task into a straightforward, measured operation.

Features and Construction

The design of this tool focuses on practical functionality for a specific woodworking task. Its construction and adjustability features are tailored to provide a reliable aid for hinge installation, using materials chosen for their suitability to the job rather than for aesthetic appeal.

Material and Build

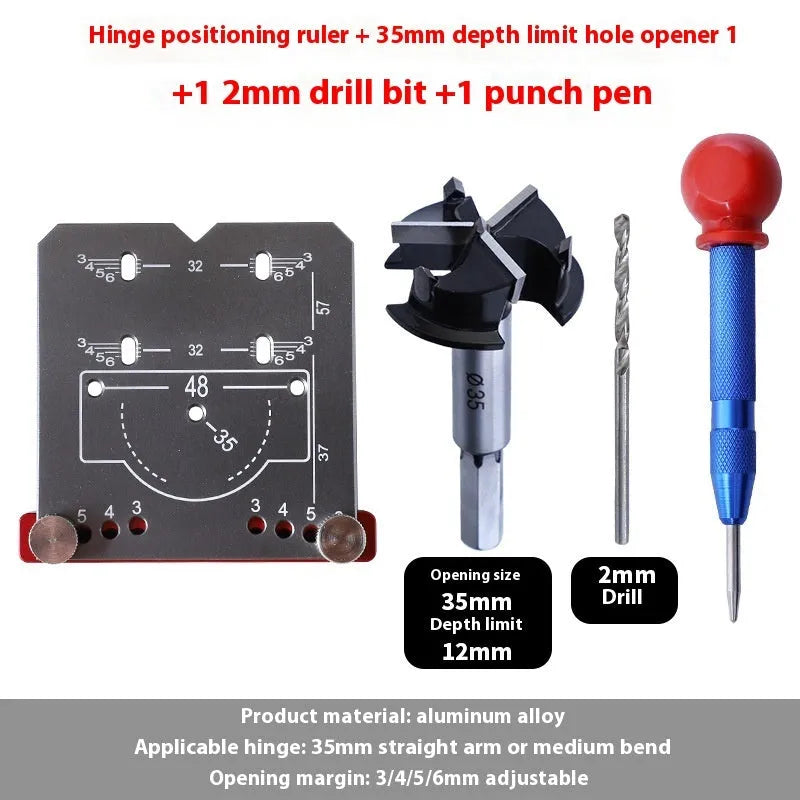

The main body of the locating rule is made from aluminium alloy. This material choice offers a practical compromise, providing sufficient structural rigidity to act as a stable guide during marking, while remaining lightweight enough for comfortable handling. The included accessory is a limit tapper featuring a blade made from hard alloy. The source text specifies that this blade's cutting edge has undergone a high-temperature heat treatment process. This technical detail is relevant as it indicates a manufacturing step intended to enhance the blade's hardness and its resistance to wear, which contributes to maintaining a sharp edge for effective marking on wood surfaces over time.

Size and Practical Fit

The tool is engineered specifically for hinges with a 35mm cup diameter, which is a standard size for many cabinet and wardrobe door systems. Its core function is to define the margin—the distance from the edge of the door to the centre of the hinge cup. The tool provides four fixed settings for this margin: 3mm, 4mm, 5mm, and 6mm. This adjustability is a key practical feature, as different furniture designs or personal preferences may require different clearances. By having these predefined settings, the user can quickly select the required margin and apply it consistently across all hinges on a project, ensuring uniformity.

Uses and Placement

This tool has a clear primary application but can be utilised in various related scenarios. Its value lies in bringing precision to a task that is fundamental to the functionality and appearance of assembled furniture.

Event or Professional Use

For professional kitchen fitters, carpenters, or furniture installers, speed and accuracy are paramount. This tool aids in batch-processing multiple cabinets or wardrobes by providing a repeatable marking guide. Using the adjustable settings allows a tradesperson to adhere to specific design plans that call for a particular door margin, ensuring every unit in a large installation is consistent. The durability implied by the hard alloy, heat-treated blade suggests it is built to withstand repeated use in a workshop or on-site environment, making it a practical addition to a professional tool kit for tasks involving fitted furniture.

Everyday Home Use

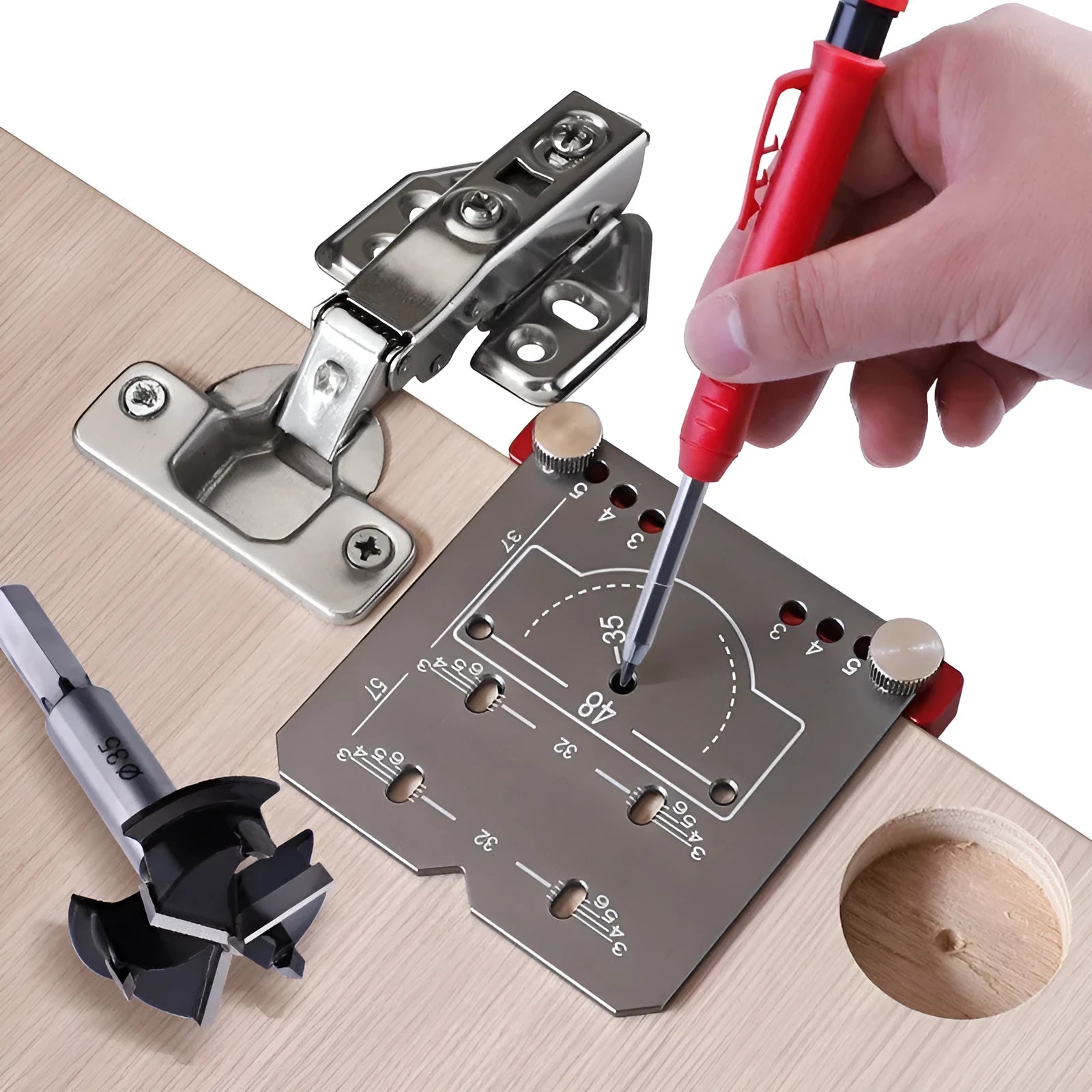

For the home DIY enthusiast, this tool demystifies one of the more precise aspects of building or assembling flat-pack cabinets, bookcases, or wardrobe systems. It turns the process of hinge placement from a measurement-intensive task prone to error into a simple template-assisted job. Whether replacing old hinges on existing cabinets or installing new furniture, the user can achieve a clean, aligned result that improves the overall look and operation of their furniture. It is particularly useful for projects where multiple doors need to be hung, as it helps maintain alignment across all of them.

Benefits and Buying Value

The value of this product is derived from the specific problems it solves and the practical advantages it offers over improvised marking methods. It is an investment in achieving better results with less frustration.

Reuse and Low Maintenance

As a metal tool, it is designed for reuse across multiple projects. Unlike disposable templates or paper guides, this locating rule is a durable object that can be stored in a toolbox and used repeatedly. Maintenance is minimal; keeping the blade clean and ensuring the moving parts for adjustment are free of sawdust are simple, low-effort tasks. The hard alloy blade's wear-resistant properties, as stated in the source, suggest it will retain its functionality over many uses without needing frequent sharpening or replacement, contributing to its long-term utility.

Why Choose This Product

Choosing this specific hinge locating rule is justified by its dedicated design for 35mm hinges and its integrated adjustable margin feature. The alternative is often a combination of a ruler, pencil, and careful measurement, which is time-consuming and less consistent. This tool consolidates those steps into a single, guided action. The inclusion of a dedicated hard alloy tapper blade is also a practical advantage, providing the right tool for making a clear starting mark or indentation for drilling, which can prevent drill bits from wandering. It represents a focused solution for a common, specific need in woodworking and furniture assembly.
