SATA3 to M.2 NGFF MSATA SSD Conversion Adapter Card for Desktop PC Storage Upgrades

This conversion card serves as a hardware bridge between modern solid-state drive formats and legacy motherboard interfaces, specifically enabling M.2 (Next Generation Form Factor) and mSATA SSDs to connect to standard SATA III ports found on desktop computer motherboards. It addresses a common upgrade scenario where users want to install faster SSD storage but lack the appropriate M.2 slots on their existing motherboards. The adapter provides a physical and electrical interface that translates the connection protocols without requiring driver software for basic storage functionality, making it suitable for both system builders and those upgrading older computers. Available in two colour variations – black and blue – it offers some aesthetic choice while performing the same technical function.

Features and Construction

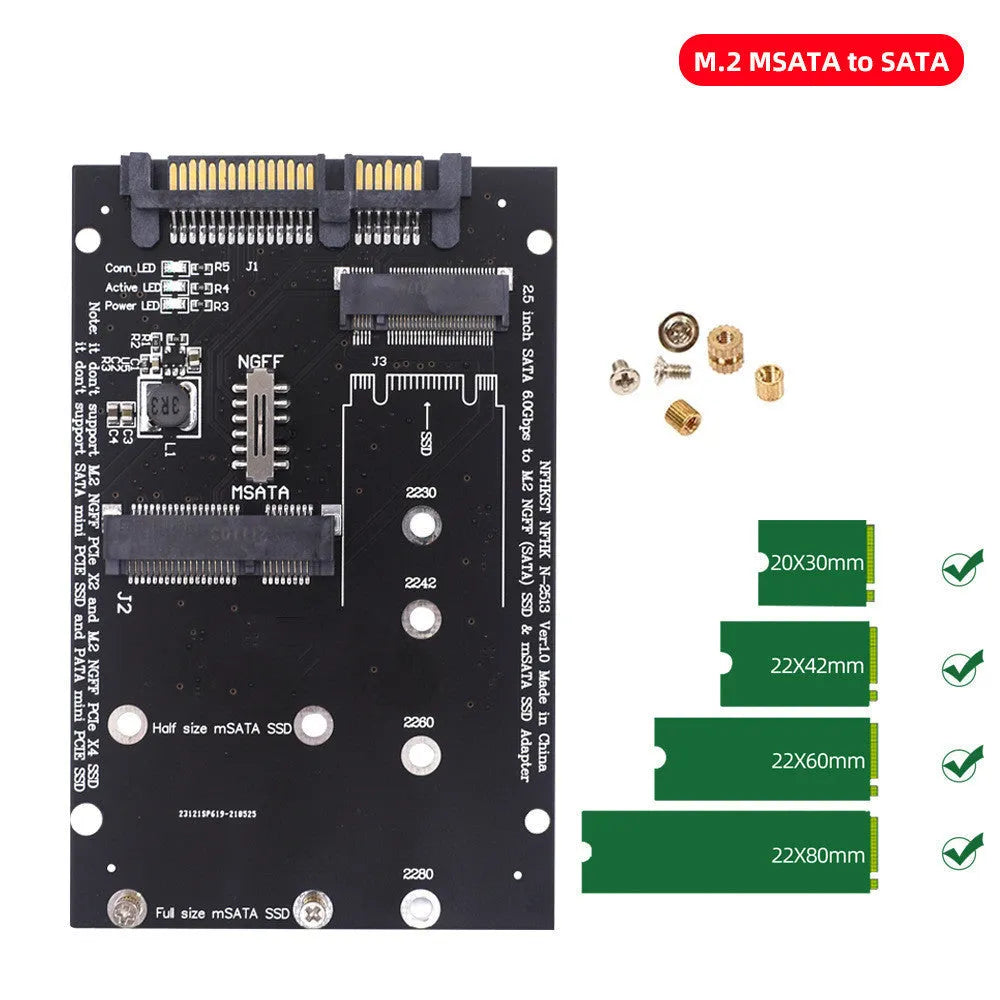

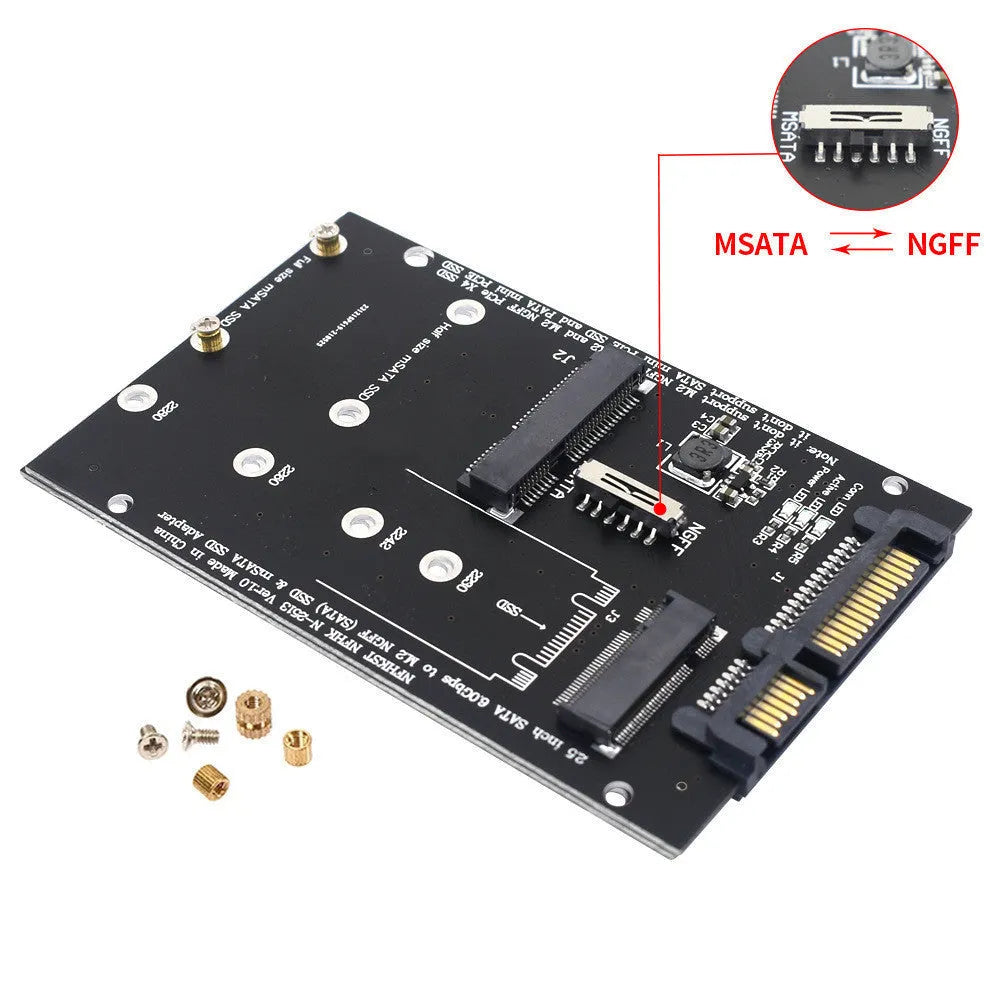

The adapter board consists of a printed circuit board that hosts both the source and destination connectors required for the conversion. On one edge, it features a standard SATA data connector and SATA power input that interface directly with desktop motherboard and power supply cables. The opposite side of the board contains the M.2 socket that accepts either M.2 NGFF or mSATA form factor solid-state drives. The board's construction is designed for straightforward installation with clearly labelled connection points that match standard desktop cabling conventions.

Material and Build

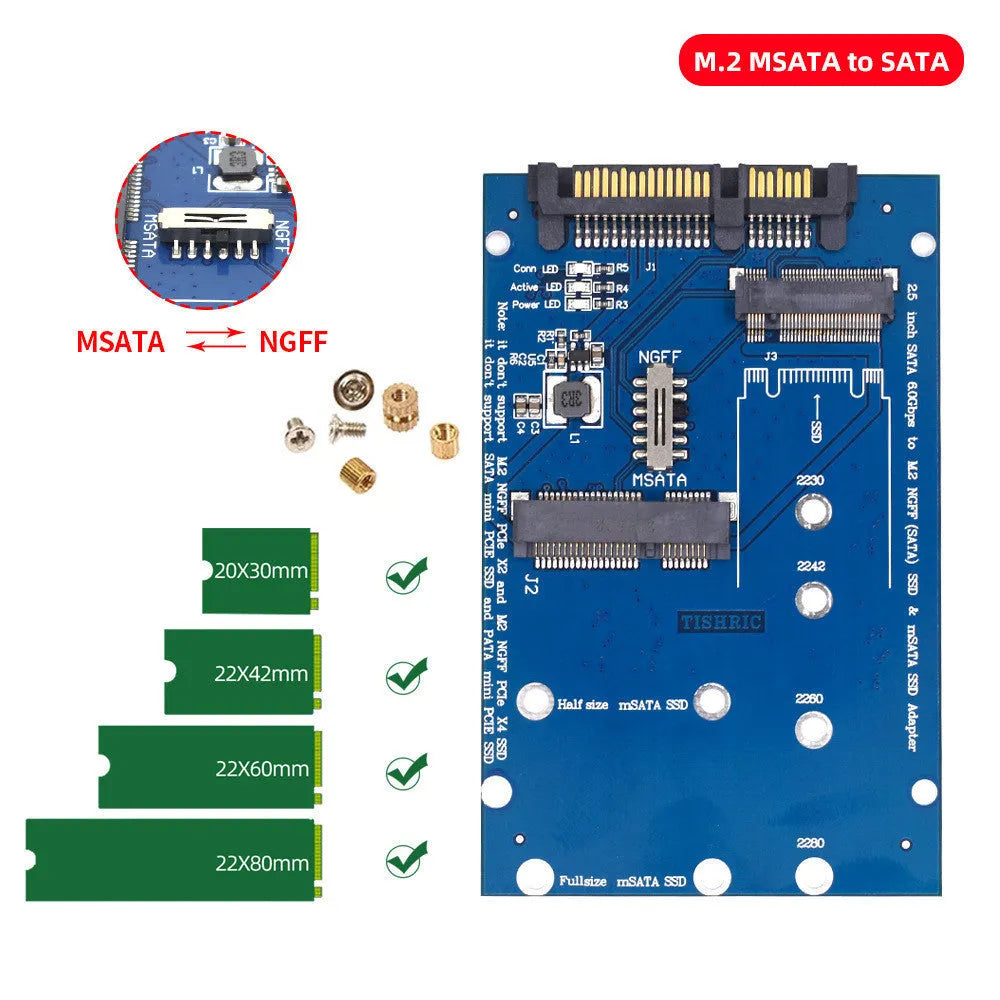

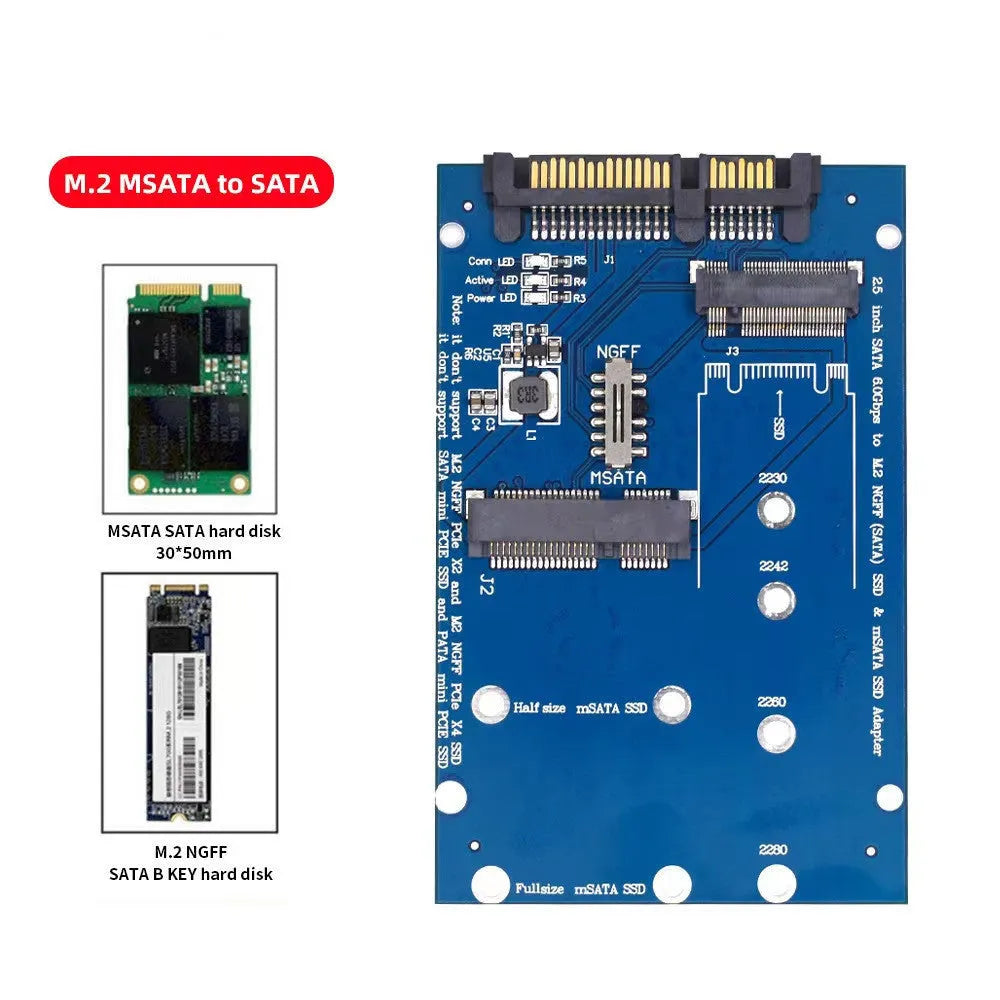

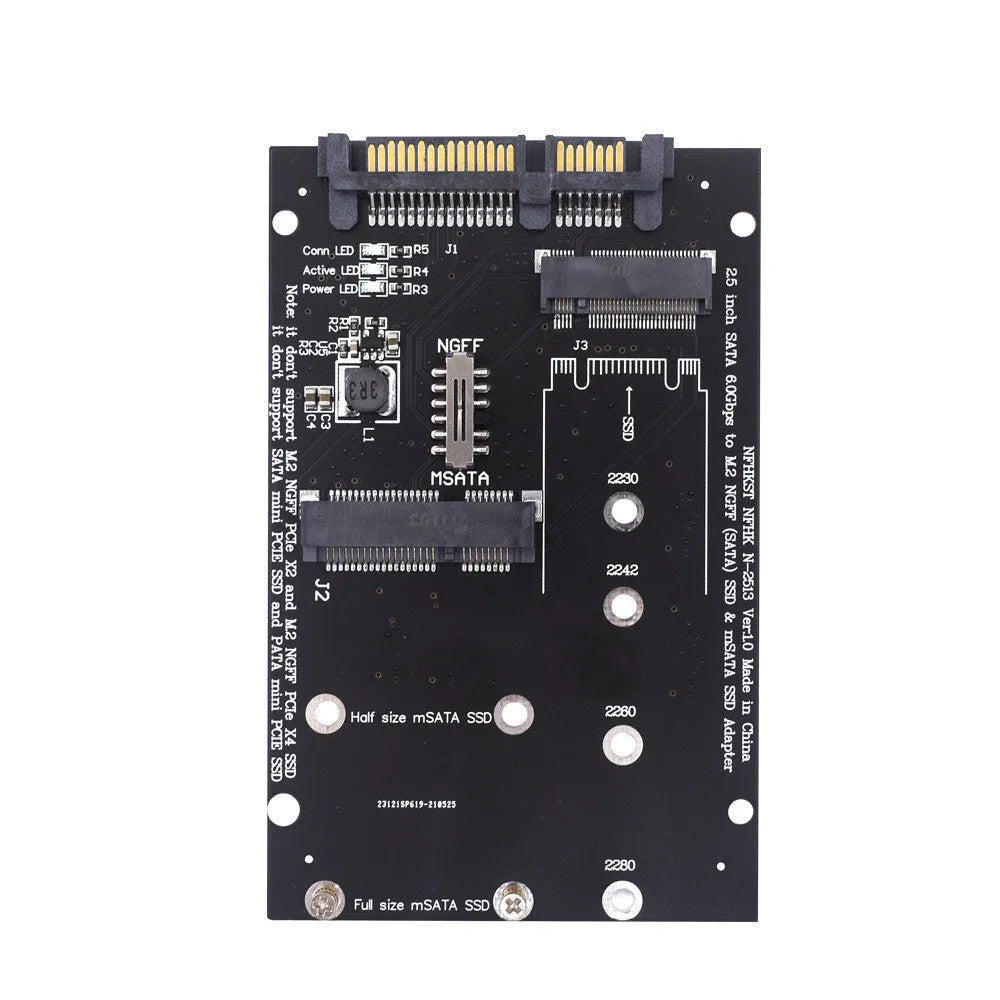

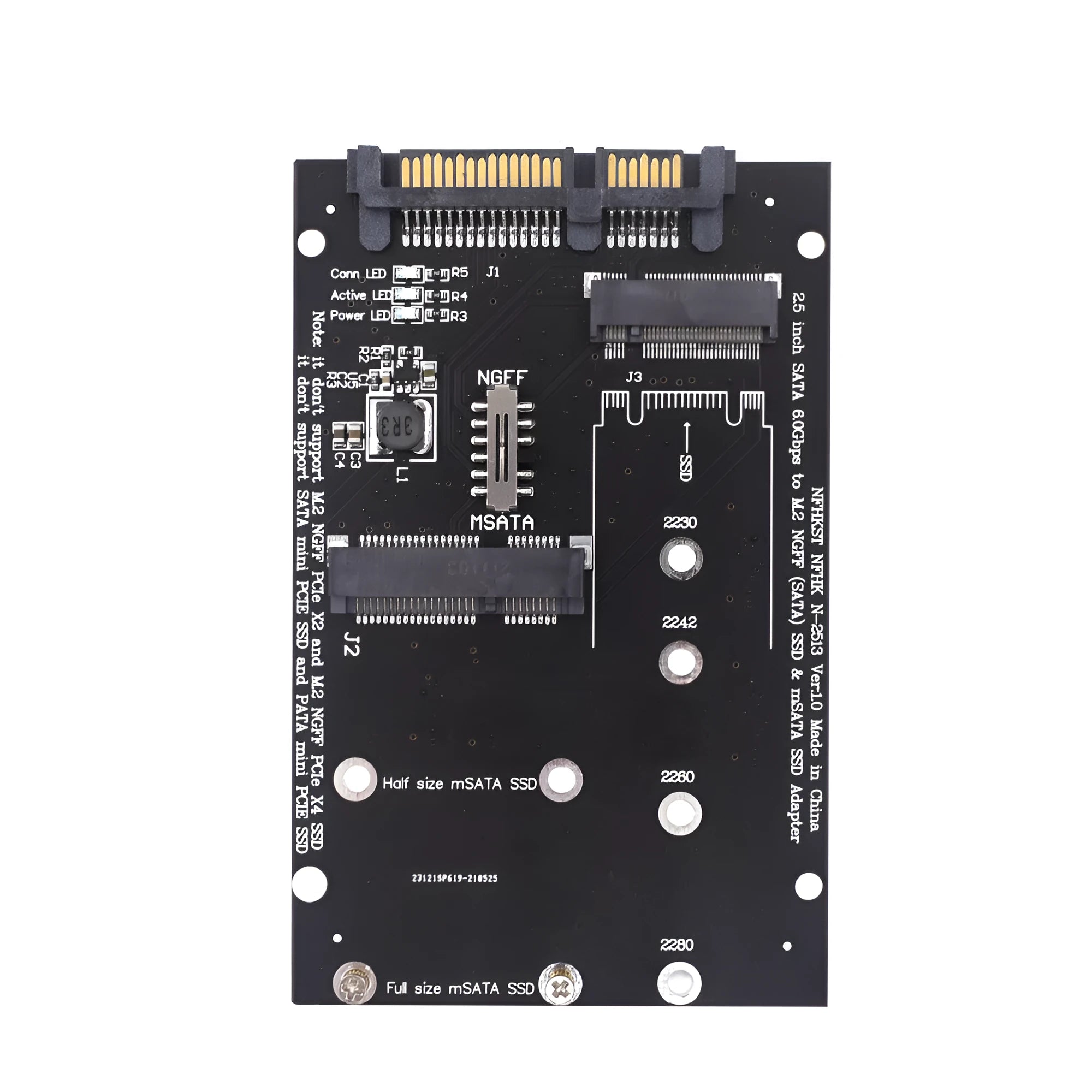

The core component is a standard printed circuit board (PCB) manufactured with the necessary circuit traces to route data and power between the SATA interface and the M.2 socket. The board includes soldered connectors that match the specifications for SATA III data transfer speeds (up to 6Gbps) and M.2 interface protocols. The two available colour options – black and blue – refer to the solder mask colour applied to the PCB surface, which provides both visual distinction and protective coating for the copper traces beneath. The board is supplied individually without additional cables or mounting hardware, reflecting its purpose as a component-level adapter.

Size and Practical Fit

The adapter card follows the physical dimensions typical of such conversion boards, designed to fit within standard desktop computer cases without requiring specialised mounting. Its form factor allows installation in various orientations depending on available space, though it's generally intended to be secured using the mounting hole provided on the M.2 SSD itself once inserted. The board's compact size enables it to be installed in most desktop chassis where SATA data and power cables can reach, making it compatible with both tower and smaller form factor cases provided adequate cable length is available.

Uses and Placement

This conversion card addresses specific upgrade scenarios in desktop computing where interface compatibility limits storage expansion options. It's particularly relevant for systems with available SATA ports but lacking the physical M.2 slots that newer SSDs require, allowing users to add fast solid-state storage without replacing their entire motherboard. The adapter enables both primary boot drives and secondary storage expansion using modern M.2 or mSATA SSDs, providing flexibility in system configuration and performance enhancement for various computing needs.

Event or Professional Use

For professional settings or system builders, this adapter offers a cost-effective solution for repurposing M.2 SSDs in systems that weren't originally designed for them. IT departments maintaining legacy workstations can use it to extend system lifespan by adding SSD performance without complete hardware replacement. System integrators might employ multiple adapters in custom builds where motherboard M.2 slots are insufficient for planned storage configurations. The absence of required drivers makes it suitable for enterprise environments with restricted software installation policies.

Everyday Home Use

Home users upgrading older desktop computers can utilise this adapter to breathe new life into their systems by adding modern SSD storage. It enables the use of widely available M.2 SSDs – often more affordable per gigabyte than 2.5" SATA SSDs – in systems that only have traditional SATA ports. The adapter is particularly useful for media centres, family computers, or secondary systems where a full motherboard replacement isn't justified. The plug-and-play nature means even users with moderate technical skills can complete the installation following basic precautions.

Benefits and Buying Value

The primary value of this conversion card lies in its ability to overcome interface compatibility limitations without significant expense or technical complexity. It provides access to modern storage technology using existing motherboard infrastructure, delaying the need for more costly system upgrades. The adapter represents a focused solution to a specific compatibility problem, offering functionality that many users will only need once per system but that delivers substantial performance benefits when implemented correctly.

Reuse and Low Maintenance

Once installed, the adapter requires no ongoing maintenance beyond the occasional dusting that all internal computer components benefit from. Its solid-state construction – with no moving parts – means it's unlikely to fail through mechanical wear. The adapter can potentially be reused in future systems if the same compatibility scenario arises, though this depends on continued relevance of the M.2 and SATA standards. The electrostatic bag packaging provides adequate protection for storage between uses if the adapter needs to be removed from one system before installation in another.

Why Choose This Product

This adapter card offers a straightforward solution to a specific technical problem: connecting M.2 or mSATA SSDs to SATA motherboard ports. Its value comes from enabling storage upgrades that would otherwise require more expensive motherboard replacements or settling for slower storage options. The dual colour choice (black or blue) provides minor aesthetic customization to match different system themes. The product's simplicity – a single board with clear connection points – makes it appropriate for users who understand basic desktop computer assembly but don't want to deal with more complex interface conversion solutions.
