STAEDTLER 551 01 Precision Car Compass: German Steel Compass with 265mm Circle Capability

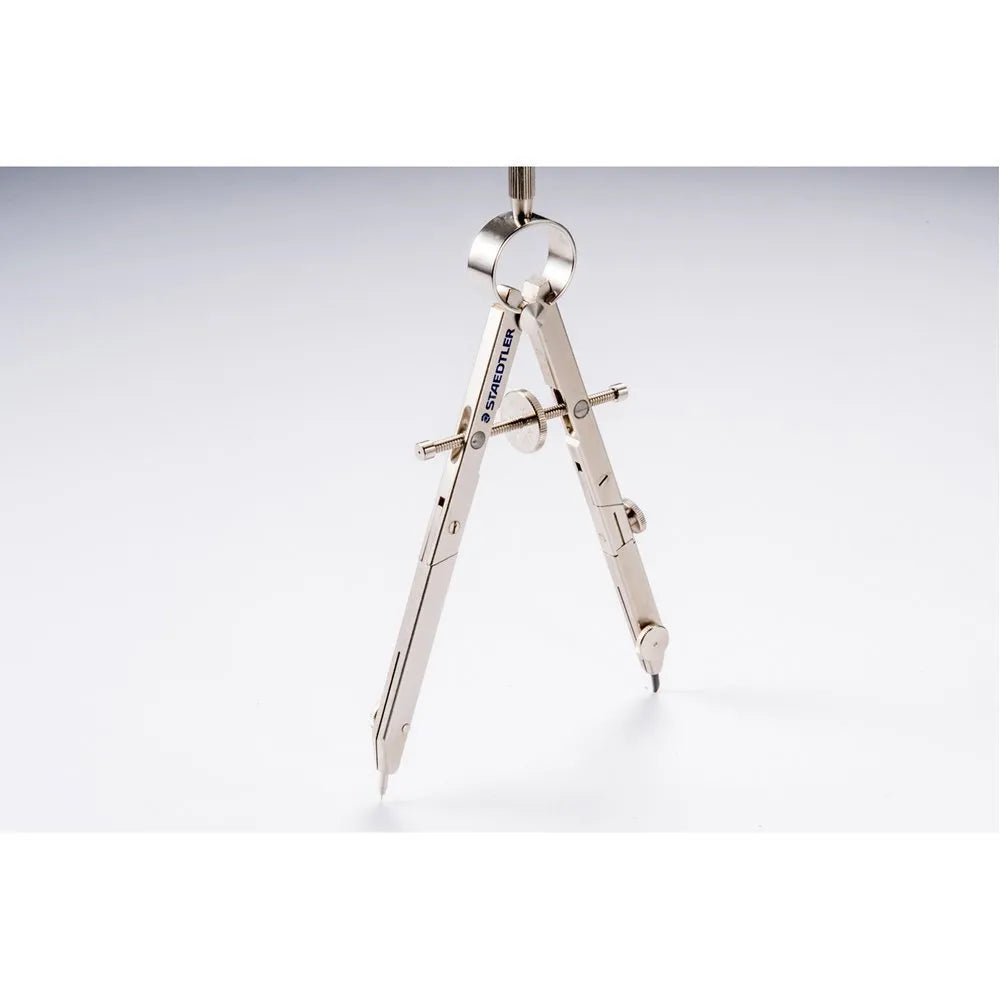

For engineers, draftsmen, and automotive designers, the ability to draw accurate, large-diameter circles is a fundamental requirement. The STAEDTLER 551 01 precision car compass addresses this specific technical need. This specialised instrument, manufactured in Germany from steel, features a unique telescopic rod mechanism that extends its reach, allowing it to create precise circles up to approximately 265mm in diameter. Unlike smaller, more general-purpose compasses, this tool is built for the stability and repeatability demanded by mechanical, architectural, or vehicle design drawings where scale and accuracy are paramount.

Features and Construction

The STAEDTLER 551 01 is defined by its purpose-built design for large-format technical drawing. Its construction and specifications are focused on delivering a single, core function: the creation of precise, large circles with a high degree of control.

Material and Build

The compass is constructed from steel. This choice of material is critical for a tool of this nature, as it provides the necessary weight and rigidity. A sturdy frame minimises flex and vibration during use, ensuring that the drawn arc remains true and consistent from start to finish. The use of steel components, a hallmark of German engineering in precision tools, contributes to the instrument's overall stability and durability for professional drafting applications.

Size and Practical Fit

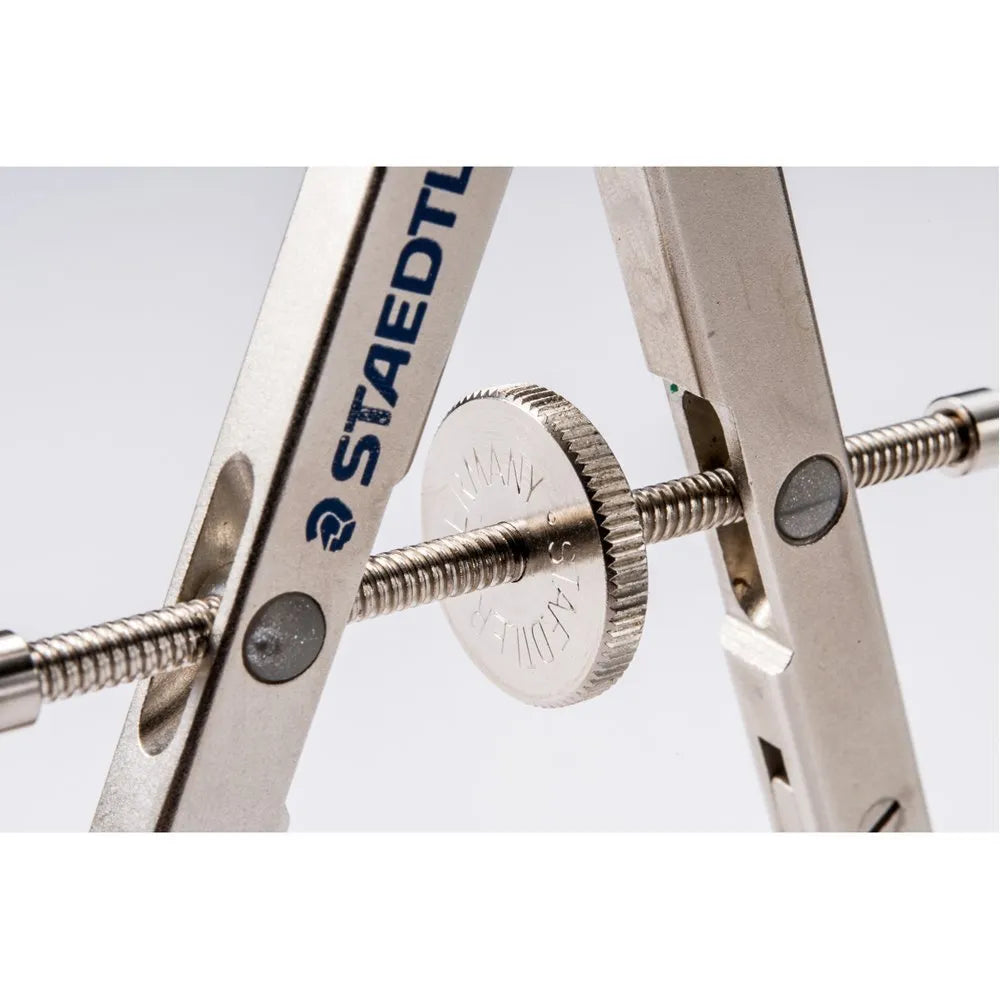

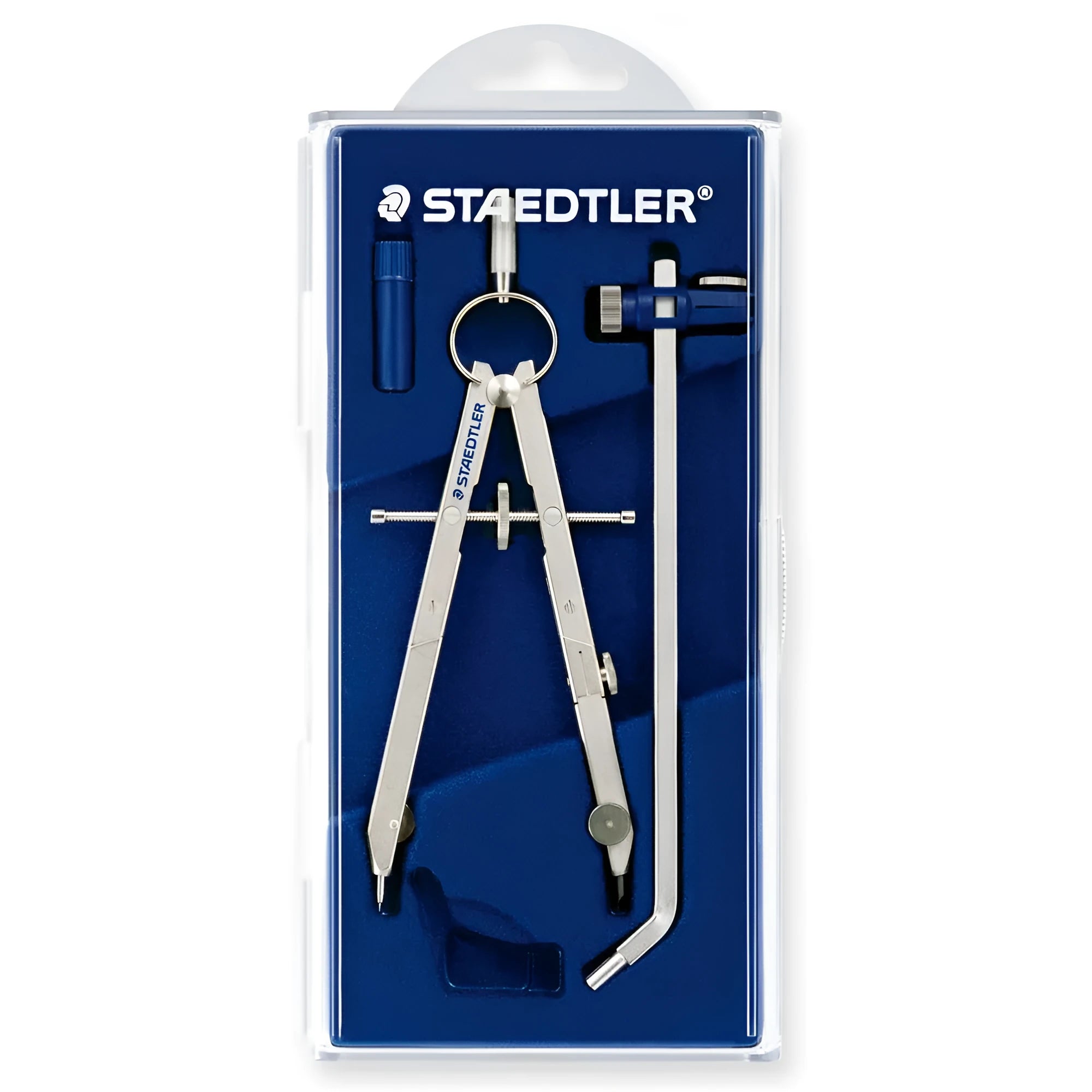

The key specification of this compass is its maximum circular drawing diameter of approximately 265mm. This capacity makes it suitable for a wide range of large-scale technical drawings. Despite this capability, the compass itself is supplied in a conveniently compact package measuring 180mm by 77mm, making it easy to store in a toolbox or drawing kit. The telescopic rod is the feature that enables this large drawing range while maintaining a manageable stored size, allowing the user to adjust the radius as needed for the task.

Uses and Placement

This compass is not a general stationery item but a specialist tool designed for specific technical and professional contexts. Its applications are directly tied to its large-diameter capability and precise construction.

Event or Professional Use

In professional environments, the STAEDTLER 551 01 car compass is an essential tool for automotive design studios, mechanical engineering departments, and architectural firms. It is used for drafting wheel arches, gear components, large structural curves, and any other element requiring a perfectly drawn large circle on technical plans. Its precision supports the creation of production-ready drawings where measurements must be exact.

Everyday Home Use

For the serious hobbyist, model maker, or advanced DIY enthusiast working on detailed projects, this compass provides professional-grade accuracy. It is ideal for creating large-scale templates, designing custom parts, or detailed artistic work on canvases where a standard compass would be inadequate. It serves users who require more than what typical school or office compasses can offer.

Benefits and Buying Value

The value of this compass lies in its specialised function, reliable construction, and the specific problem it solves for its user.

Reuse and Low Maintenance

As a solid steel instrument, the compass is built for long-term use. With proper care to keep the pivot joint clean and the point sharp, it can serve as a reliable tool for many years across countless projects. Its design avoids complex mechanisms that might wear out, focusing instead on robust, simple functionality that endures.

Why Choose This Product

Choosing the STAEDTLER 551 01 means selecting a tool designed for a specific and demanding task. It is for the user who has encountered the limitation of a standard compass and needs guaranteed performance for large circles. The combination of its 265mm capacity, German steel construction, and STAEDTLER's reputation for quality drafting supplies makes it a definitive solution for this niche requirement, eliminating the inaccuracy and frustration of improvised methods for drawing large arcs.
