USB Rotary Splitter Hub with 4-Port Expansion and 300mA Individual Power Supply

This USB rotary splitter addresses the increasing need for additional USB connectivity in modern computing environments, where laptops and compact desktops often provide limited USB ports. Designed to expand a single USB port into four functional connections, the hub supports a wide range of peripherals including U disks, card readers, USB mice and keyboards, scanners, digital cameras, USB sound cards, and external hard drive enclosures. Its plug-and-play functionality eliminates the need for driver installation on most contemporary operating systems, while the hot-swap capability ensures you can safely connect and disconnect devices without interrupting other connected peripherals. The hub's compact 15.5 x 7.8 x 2.7 cm footprint makes it suitable for both desktop and mobile computing setups.

Technical Specifications and Performance

The USB rotary splitter incorporates several technical features designed to maintain stable operation across various computing scenarios. Using a second-generation USB HUB controller, the device can support up to 127 connected USB devices through daisy-chaining, while each of the four ports provides individual power management with up to 300mA output capacity.

Connection Speed and Compatibility

Equipped with high-speed USB chips, the hub supports USB 3.0/2.0/1.0 standards with backward compatibility ensuring functionality with older USB devices. The theoretical maximum transfer speed reaches 5GB, facilitating efficient data transfer for digital cameras, external storage devices, and scanners. This makes the hub particularly suitable for photographers transferring large image files or professionals working with substantial data sets who require reliable transfer speeds without compromising connection stability.

Power Management and Protection

Each of the four USB ports delivers up to 300mA of power, sufficient to operate most standard USB peripherals without requiring external power adapters. The hub incorporates current protection functionality with overload voltage and instantaneous current protection, safeguarding both the hub and connected devices from power fluctuations. With a working voltage of 5V and operating current of 500mA, the device maintains stable working output across its specified temperature and humidity ranges for consistent performance.

Environmental Operating Parameters

Designed to function within specific environmental conditions, the USB rotary splitter operates reliably between -20°C and 75°C temperatures and 10% to 90% humidity levels. These parameters ensure stable performance in various indoor environments, from office settings to home workspaces. The device can withstand storage temperatures from -40°C to 85°C, providing durability during transportation or when not in active use.

Practical Applications and Device Support

The USB rotary splitter serves multiple practical applications across different user scenarios, from home office setups to professional computing environments. Its compatibility with a broad range of USB devices makes it versatile solution for expanding connectivity options without requiring technical expertise for installation or configuration.

Office and Productivity Use

In office environments, the hub efficiently connects productivity peripherals such as USB keyboards, mice, card readers, and external storage devices simultaneously. The plug-and-play functionality ensures immediate operation on supported systems including Windows 2000, 2003, ME, XP, Vista, and Mac OS 8.1 or higher, with only Windows 95/98 systems requiring additional driver installation. This makes the hub suitable for shared workspaces or temporary setups where quick deployment without technical support is necessary.

Digital Media and Creative Applications

For photographers, videographers, and creative professionals, the hub facilitates connection of digital cameras, video cameras, external hard drives, and USB sound cards through its high-speed USB 3.0 compatible interface. The 300mA power supply per port provides sufficient energy for most portable digital devices, while the hot-swap capability allows safe connection and disconnection of memory cards and storage media during active workflow sessions without disrupting other connected equipment.

Home Computing and Peripheral Expansion

In home computing environments, the USB rotary splitter enables simultaneous connection of gaming peripherals, printers, scanners, and charging cables for mobile devices. The compact ABS plastic construction with available black or white colour options allows the hub to blend with various desktop aesthetics, while its straightforward operation makes it accessible for users with varying technical experience levels seeking to expand their computer's connectivity capabilities.

Design Considerations and Operational Benefits

The USB rotary splitter incorporates several design elements focused on practical functionality and reliable operation. Its construction and technical implementation prioritise stable performance across diverse usage scenarios while maintaining simplicity in operation and installation.

Material Build and Physical Design

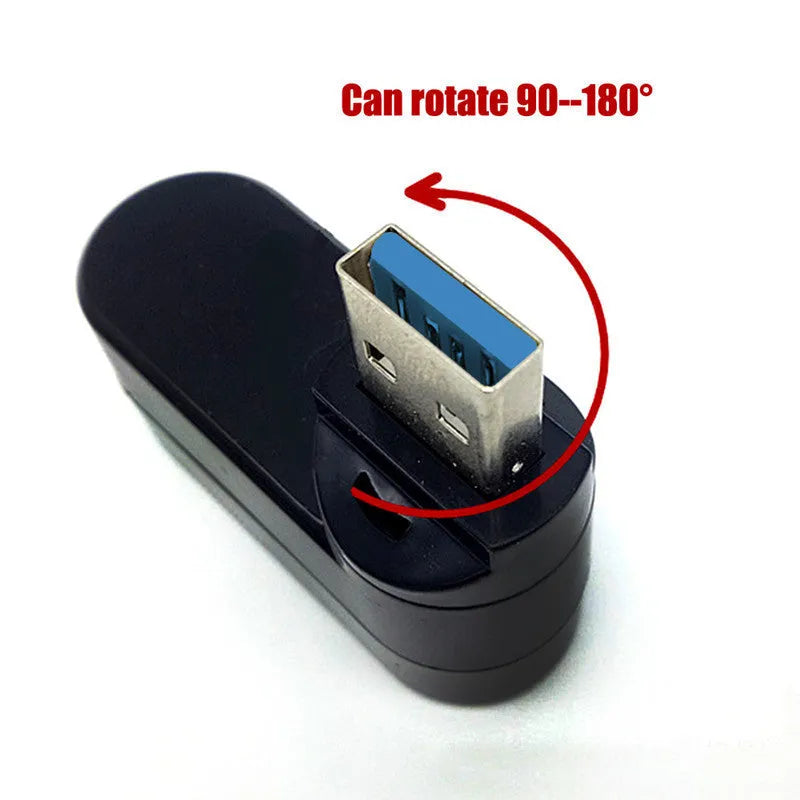

Manufactured from ABS plastic, the hub's shell provides durable housing for the internal electronic components while maintaining a lightweight profile suitable for portable use. The 15.5 x 7.8 x 2.7 cm dimensions offer a compact footprint that occupies minimal desk space, and the rotary design allows flexible positioning to accommodate various cable management approaches. The available black and white colour options provide aesthetic compatibility with different computer setups and peripheral collections.

System Compatibility and Ease of Use

The hub's broad system compatibility spans Windows 95 through to modern Windows versions and Mac OS 8.1 and higher, with only legacy Windows 95/98 systems requiring driver installation. This extensive compatibility ensures the device functions with both current and older computer systems, making it suitable for mixed computing environments. The plug-and-play operation eliminates complex setup procedures, while the hot-swap capability provides practical convenience for users frequently connecting and disconnecting various USB devices throughout their workflow.

Value Through Extended Connectivity

By expanding a single USB port to four functional connections, the hub extends the utility of computers with limited built-in USB ports, potentially delaying the need for more expensive hardware upgrades. The ability to support up to 127 devices through daisy-chaining offers scalability for specialised applications requiring multiple peripheral connections. The inclusion of current protection and stable working output across specified environmental conditions contributes to reliable operation that reduces the risk of data transfer interruptions or peripheral damage during use.
